Soft Polyester Lifting Slings Crane Rigging Straps With Eye Protector
| Place of Origin: | CHINA |
| Brand Name: | Dahua Sling |
| Certification: | CE GS ISO |
| Model Number: | eye eye sling 1tonne |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 8 |
| Packaging Details: | Package: Shrink Wrap, carton and pallet |
| Delivery Time: | 20-30 days for one container |
| Supply Ability: | 5 containers per month |
| Material: | High Tenacity Polyester Yarn | W.L.L: | 1000kg To 20,000kg |
|---|---|---|---|
| Sling Color: | Brown | Size: | 300mm Width, Length As Request |
| Logo Printing: | We Do It Oursleves | Eye Protector: | Available |
| Standard: | BS EN 1492-1 | ||
| High Light: | industrial lifting slings,crane lifting belt | ||

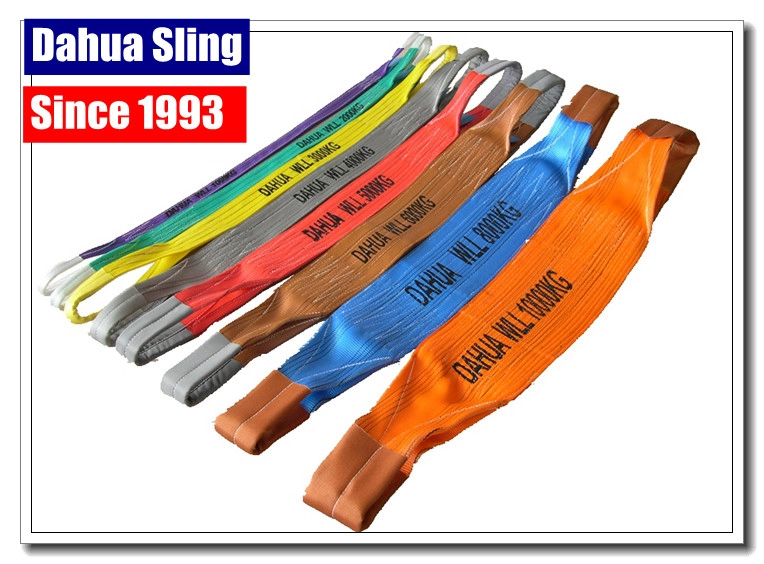

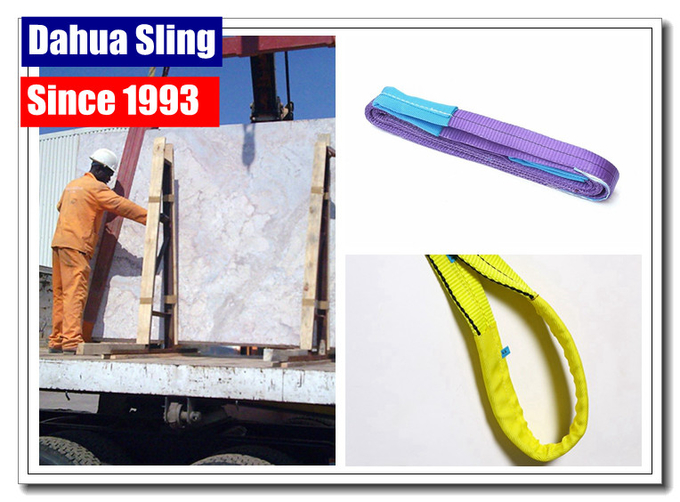

Polyester Flat Web Lifting Slings Belt slings with reinforced eyes Conforms to BS EN 1492-1 1000kg to 20,000kg
Series kind of Color Round Webbing Sling
The maximum load of endless wire rope sling ranges from 0-30 ton. The length ranges from 1-100 meters. The flt web slings are made of PES, and can enhance the strength of web slings by using intensive eyes or mental accessories at both ends.
Advantages of polyester flat woven round webbing sling
1.The product can be devided into single layer and multi-layer, and can sew in many ways.
2.The siza can follow the customer's requirements.
3.Wide bearing surface, which can reduce the pressure of surface load.
4.Smooth surface, which won't hurt the lifted objects.
5.High strength-to-weight ratio.
Parameters of polyester flat woven round webbing sling
| Model | Minimum breaking Load(kg) | Rated Load(kg) | Vertical Lift P=1(kg) | 45 Degree Angle Lift P=1.8(kg) | 90DegreeAngle Lift P=1.4(kg) |
| EB-B-01 | 6000 | 1000 | 1000 | 1800 | 1400 |
| EB-B-02 | 12000 | 2000 | 2000 | 6900 | 2800 |
| EB-B-03 | 18000 | 3000 | 3000 | 5400 | 4200 |
| EB-B-04 | 24000 | 4000 | 4000 | 7200 | 5600 |
| EB-B-05 | 30000 | 5000 | 5000 | 9000 | 7000 |
| EB-B-06 | 36000 | 6000 | 6000 | 10800 | 8400 |
| EB-B-08 | 48000 | 8000 | 8000 | 14000 | 11200 |
| EB-B-10 | 60000 | 10000 | 10000 | 18000 | 14000 |
| EB-B-12 | 72000 | 12000 | 12000 | 21600 | 16800 |
| EB-B-20 | 120000 | 20000 | 20000 | 36000 | 28000 |
| EB-B-30 | 180000 | 30000 | 30000 | 54000 | 42000 |
Sling Capacities and Colour Codes Duplex Flat Webbing Slings.Colour Code.Webbing WidthApprox Weight (g/m)Straight x WLL (kg)Choked x 0.8 WLL (kg)Basket x 2 WLL (kg)45 degree basket x 1.8 WLL (kg)90 degree basket x 1.4 WLL (kg)Violet (purple)30mm1501000800200018001400Green60mm30020001600400036002800Yellow90mm45030002400600054004200Grey120mm62040003200800072005600Red150mm780500040001000090007000Brown180mm10306000480012000108008400Blue240mm137080006400160001440011200Orange300mm1720100008000200001800014000Orange300mm-120006900240002160016800Orange240mm-1600012800320002880022400Orange300mm-2000016000400003600028000
|
WARNING:
1.The slings should avoid the harm of the sharp instrument when lifting the goods.
2.You can add the leather or polyester on the outer layer of the slings to protect it when lifting the goods .
3.Never use slings with damages or defects.
4.Forbidden to tie a knot of the sling or link with a knot. You should link the sling with the right connecting piece.
5.Only use slings with clear identifications.
6.Before use,check working load limit, length and working position.
7.Never use slings under -40°C Or more than 100°C .
8.Elongation rate <3% at working load <10% at breaking load.
ADVANTAGE:
SGS system and CE approved
Top Quality to America market and European markets
TUV/GS approved quality
Competitive Price
Long Time Cooperation
20 customers are sourcing from us for 12 years
Quick Shipment
Sincere and Efficient work 24-Hours
Quick shipment within 20 days to 35 days
Produced according to customer's drawing and sample
10 new items developed per month
Nanjing Dahua Speical belt Knit co.,ltd, is located in Nanjing, China, is a professional company which owns one stop service from research, design, production ,sale to service.
We started our business earlier at t1993. We are a qualified supplier and we have obtained ISO9001:2000 and CE Quality System Certificate for Swivel Hoist Ring. Our main products include lifting and lashing serious, more than 300 kinds of specifications. Location, harmonious human environment and outstanding industrial advantages have made our company become the ideal place for foreign investment. Up till now, our products are sold to South Korea, the United Kingdom, the United States, Germany, Russia, Vietnam, Philippine, Taiwan and other countries and regions. With our effort, a good reputation has been erecting among the majority of users at home and abroad.
