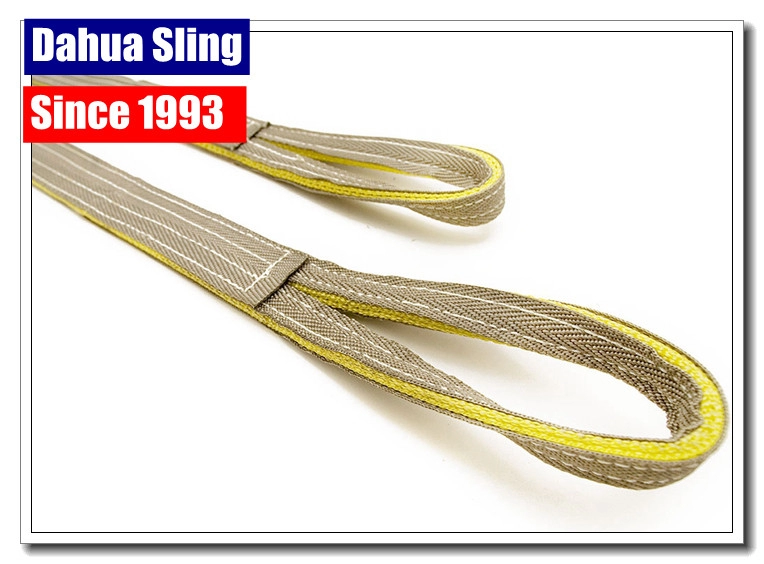

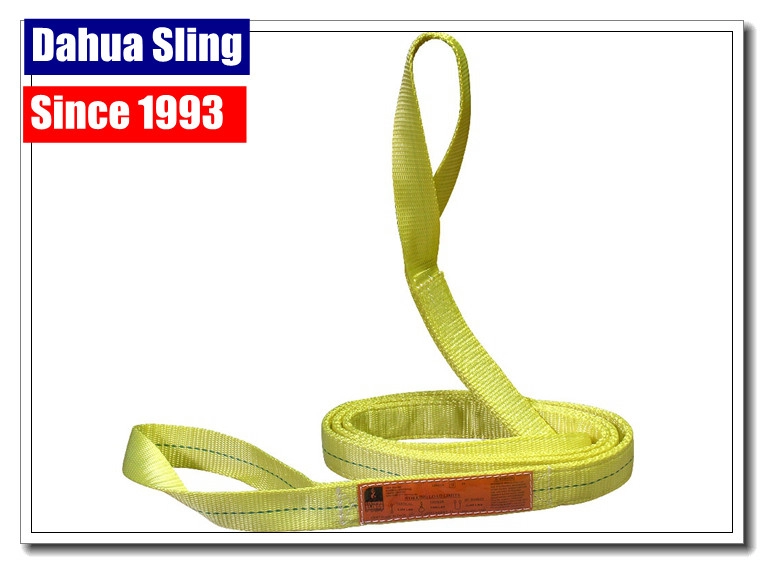

Twisted Eye & Eye Construction Lifting Straps , 60mm Crane Lifting Belt
| Place of Origin: | CHINA |
| Brand Name: | Dahua Sling |
| Certification: | CE GS ISO |
| Model Number: | 2 Ply Type 4 Eye & Eye Polyester Sling |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 8 |
| Packaging Details: | Package: Shrink Wrap, carton and pallet |
| Delivery Time: | 20-30 days for one container |
| Supply Ability: | 5 containers per month |
Detailed Product Description
| Material: | High Tenacity Polyester Yarn | W.L.L: | 6,200 Lbs |
|---|---|---|---|
| Sling Color: | Yellow | Size: | 60mm Width, Length As Request |
| Logo Printing: | We Do It Oursleves | Eye Protector: | Available |
| Standard: | American Standard According To WSTDA | ||
| High Light: | industrial lifting slings,crane lifting belt | ||
2"x12' 2 Ply Type 4 Eye & Eye Polyester Sling Weight: 3.2 lbs vertical Capacities-6,200 lbs choker: 4,960 lbs
All of our slings are made to order with a standard lead time of 20-40 days for production prior to shipping.
| Sling Width | # of Plys | Eye Length | Choker | Vertical | Basket |
| 1" | 1 | 8.5" | 1200 | 1500 | 3000 |
| 1" | 2 | 8.5" | 2480 | 3100 | 6200 |
| 1" | 3 | 10" | 3300 | 4100 | 8200 |
| 1" | 4 | 10" | 4400 | 5500 | 11000 |
| 2" | 1 | 10" | 2480 | 3100 | 6200 |
| 2" | 2 | 10" | 4960 | 6200 | 12400 |
| 2" | 3 | 12" | 6600 | 8200 | 16500 |
| 2" | 4 | 12" | 8800 | 11000 | 22000 |
| 3" | 1 | 11" | 3760 | 4700 | 9400 |
| 3" | 2 | 11" | 7520 | 9400 | 18800 |
| 3" | 3 | 14" | 9900 | 12300 | 24700 |
| 3" | 4 | 14" | 13120 | 16400 | 32800 |
| 4" | 1 | 12" | 4960 | 6200 | 12400 |
| 4" | 2 | 12" | 10000 | 12500 | 25000 |
| 4" | 3 | 16" | 12200 | 15300 | 30600 |
| 4" | 4 | 16" | 16320 | 20400 | 40800 |
| 5" | 1 | 14" | 6300 | 7800 | 15700 |
| 5" | 2 | 14" | 11000 | 13700 | 27400 |
| 5" | 3 | 18" | 15300 | 19100 | 38200 |
| 5" | 4 | 18" | 20400 | 25000 | 51000 |
| 6" | 1 | 16" | 7520 | 9400 | 18800 |
| 6" | 2 | 16" | 15040 | 18800 | 37600 |
| 6" | 3 | 18" | 18300 | 22900 | 45900 |
| 6" | 4 | 18" | 24880 | 30600 | 61200 |
| 8" | 1 | 20" | 9400 | 11800 | 23600 |
| 8" | 2 | 20" | 18200 | 22700 | 45400 |
| 8" | 3 | 24" | 24500 | 30600 | 61200 |
| 8" | 4 | 24" | 32600 | 40800 | 81500 |
| 10" | 1 | 24" | 11800 | 14700 | 29400 |
| 10" | 2 | 24" | 22700 | 28400 | 56800 |
| 10" | 3 | 24" | 30600 | 38200 | 76400 |
| 10" | 4 | 24" | 40800 | 51000 | 101900 |
| 12" | 1 | 24" | 14100 | 17600 | 35200 |
| 12" | 2 | 24" | 27300 | 34100 | 68200 |
| 12" | 3 | 24" | 36700 | 45900 | 91700 |
| 12" | 4 | 24" | 48900 |
|
