Duplex Flat Lifting Slings Safety Lifting Belt 5 Ton Wide Bearing Surface
| Place of Origin: | China |
| Brand Name: | Dahua Sling |
| Certification: | CE TUV/GS |
| Model Number: | eye eye webbing sling |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | USD 30,000 / 20'GP |
| Color: | As Color Code | Eye Protector: | White Black Or Same As Webbing |
|---|---|---|---|
| Safety Factor: | 5:1 6:1 7:1 8:1 | Layer:: | Single-layer, Double-layer |
| Width:: | 25mm-300mm | Biggest Lifting Sing Factory: | Nanjing Dahua Special Belt Knit Co.,Ltd |
| Chinese Sling Supplier: | Nanjing Dahua Special Belt Knit Co.,Ltd | HS Code: | 5609000000 |
| High Light: | webbing sling belt,polyester lifting belts | ||

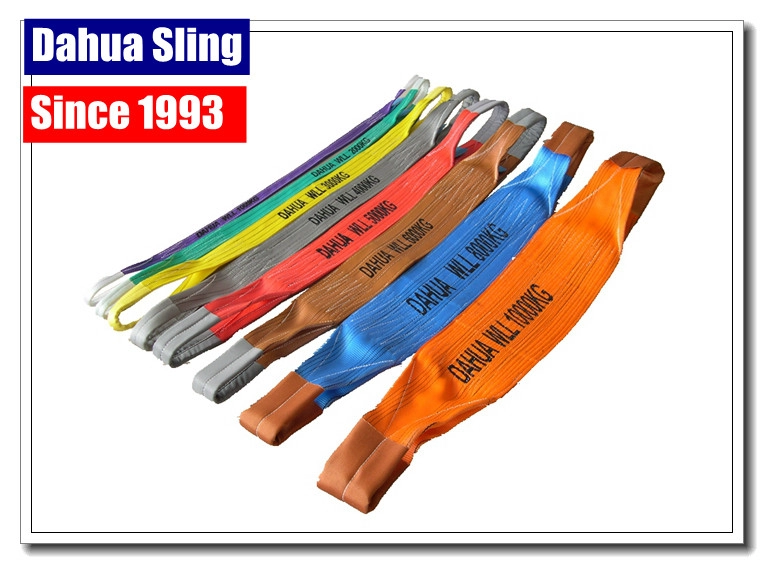

Duplex eye eye webbing sling, polyester material, produces by DAHUA SLING Since 1993 EN 1492-1
Brief Info
Model NO.: FS-01
Material: Polyester
Fixed Form: Sewing Type
Rope Core Type: Polyester
Certification: GS, CE, ISO 9001
Safety Factor: 5:1, 6:1, 7:1, 8:1
Trademark: DAHUA SLING
Specification: EN1492-1
HS Code: 5609000000

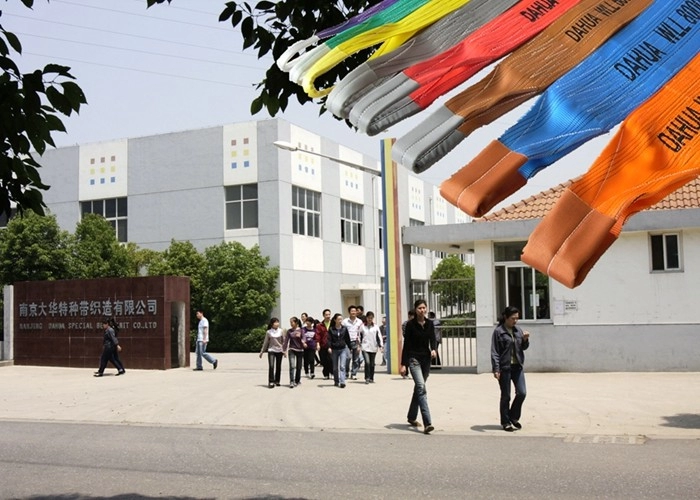

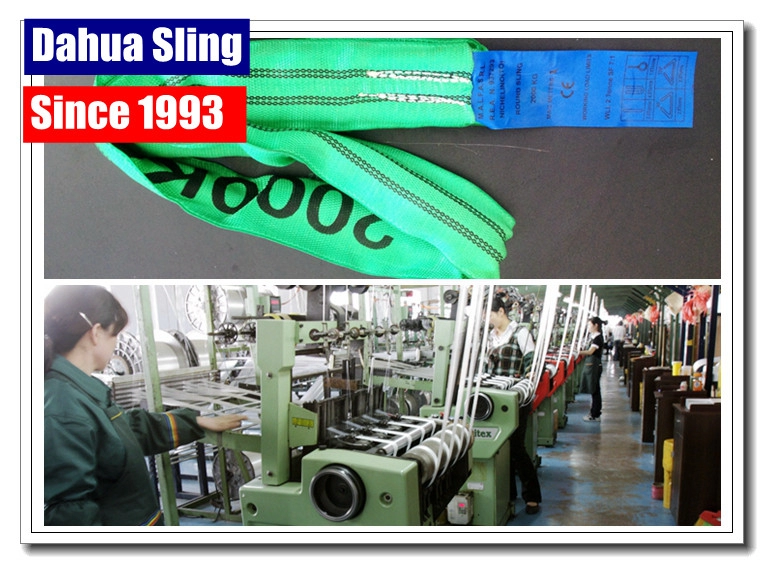

About us
Nanjing Dahua special belt knit Co., Ltd. is a professional manufacturer of lifting and lashing products. We engaged in researching, designing, manufacturing, distributing and providing after-sales services. With more than 20 years of experience, our company is keeping on providing top quality products to the world!
| Full company name | Nanjing dahua special belt knit |
| Register date: | 1993-01-01 |
| Business License No. | 91320100608919015B |
| Tax No. | 320112608919015 |
| Export License Registration No.: | 0305519 |
| ISO9001 No. | TUV Rheinland [01100038901] |
| GS No. | TUV Rheinland [S502223800001] [S50222380 0002] |
| Factory | Self-owned for 25 years (since 1993) |
| Workers | 187 workers, 60% with 10+ years experience |
| Export volume | yearly 1200 Tons Ratchet Tie Downs |
| Total Building Size: | 24000 Square meters |
| Office Size: | 3800 Square meters |
| Address: | No.2 Changsheng Road, Getang, Nanjing, China 210048 |
| Website: | www.dahua-sling.com |
| 1T WEBBING SLING | Modelo | Color | Safety factor | Widthmm) | M.B.S(kg) |
 | 5DEE010 | Purple | 5:1 | 25 | 5T |
| 6DEE010 | Purple | 6:1 | 25/38 | 6T | |
| 7DEE010 | Purple | 7:1 | 30/50/60 | 7T | |
| 8DEE010 | Purple | 8:1 | 50 | 8T |
| 2T WEBBING SLING | Modelo | Color | Safety factor | Widthmm) | M.B.S(kg) |
 | 5DEE020 | Green | 5:1 | 50 | 10T |
| 6DEE020 | Green | 6:1 | 50 | 12T | |
| 7DEE020 | Green | 7:1 | 50/60 | 14T | |
| 8DEE020 | Green | 8:1 | 65 | 16T |
| 3T WEBBING SLING | Modelo | Color | Safety factor | Widthmm) | M.B.S |
 | 5DEE030 | Yellow | 5:1 | 75 | 15T |
| 6DEE030 | Yellow | 6:1 | 75 | 18T | |
| 7DEE030 | Yellow | 7:1 | 75/90 | 21T | |
| 8DEE030 | Yellow | 8:1 | 95 | 24T |
| 4T WEBBING SLING | Modelo | Color | Safety factor | Widthmm) | M.B.S |
 | 5DEE040 | Grey | 5 | 100 | 20T |
| 6DEE040 | Grey | 6 | 100 | 24T | |
| 7DEE040 | Grey | 7 | 100/120 | 28T | |
| 8DEE040 | Grey | 8 | 120 | 32T |
| 5T WEBBING SLING | Modelo | Color | Safety factor | Widthmm) | M.B.S(kg) |
 | 5DEE050 | Red | 5:1 | 125 | 25T |
| 6DEE050 | Red | 6:1 | 125 | 30T | |
| 7DEE050 | Red | 7:1 | 125/150 | 35T | |
| 8DEE050 | Red | 8:1 | 150 | 40T |
| 6T WEBBING SLING | Modelo | Color | Safety factor | Widthmm)) | M.B.S(kg) |
 | 5DEE060 | Brown | 5:1 | 150 | 30T |
| 6DEE060 | Brown | 6:1 | 150 | 36T | |
| 7DEE060 | Brown | 7:1 | 150/180 | 42T | |
| 8DEE060 | Brown | 8:1 | 180 | 48T |
| 8T WEBBING SLING | Modelo | Color | Safety factor | Widthmm) | M.B.S |
 | 5DEE080 | Blue | 5:1 | 200 | 40T |
| 6DEE080 | Blue | 6:1 | 200 | 48T | |
| 7DEE080 | Blue | 7:1 | 200/240 | 56T | |
| 8DEE080 | Blue | 8:1 | 240 | 64T |
| 10T WEBBING SLING | Modelo | Color | Safety factor | Widthmm) | M.B.S |
 | 5DEE100 | Orange | 5:1 | 250 | 50T |
| 6DEE100 | Orange | 6:1 | 250 | 60T | |
| 7DEE100 | Orange | 7:1 | 250/300 | 70T | |
| 8DEE100 | Orange | 8:1 | 300 | 80T |
CAUTIONS:
- Do not attempt to use sling above rated lifting capacity.
- When selecting a sling,it is very important to consider the angles at which the sling will be used.
- Slings are subject to cutting when ifting items with sharp egeds.In this case,always use protective sleeves
- Do not use a damaged sling,and se only if trained.
- Do not tie knots in sling webbing as strength is greatly reduced.
- Never drag a sling beneth from a load which is resting on it.
- Chemical active environments can affect the strength of slings
- Inspect slings weekly or more frequently depending on the sling use conditions.
- Always strore slings in a cool,dry and dark place to extend the working lift.
- Always read and understand the operating instructions before use.
- Failure to comply with this warning may result in serious load damageand death or injury.
When using flat woven webbing slings always:
• Store and handle belt slings correctly.
• Inspect belt slings and accessories before use and before placing into storage.
• Follow safe slinging practices, as given overleaf.
• Position the bight for choke lift at 120° (natural angle).
• Position the sling so that the load is uniformly spread over its width and protect the sling from sharp edges.
• Apply the correct mode factor for the slinging arrangement.
When using flat woven webbing slings never:
• Attempt to shorten, knot or tie belt slings.
• Expose belt slings to direct heat or flames.
• Use belt slings at temperatures above 80°C or below 0°C without consulting the supplier.
• Expose belt slings to chemicals without consulting the supplier.
• Shock load belt slings.
• Use belt slings which are cut or which have loose or damaged stitching
