Customized Logo Harga Webbing Sling , Hoist Lifting Straps Acid Resistance
| Place of Origin: | China |
| Brand Name: | Dahua Sling |
| Certification: | OSHA |
| Model Number: | eye eye webbing sling |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | USD 30,000 / 20'GP |
| Color: | Yellow | Logo: | Customized |
|---|---|---|---|
| Eye Protector: | Yellow Or Custmized | Eye Type: | Flat / Twisted / Folded |
| Material: | 100 % Polyester | Safety Factor: | 7000 Or 9800 Psi ( Calss 5 Or Class 7) |
| Layer:: | Single-layer, Double-layer | Width:: | 1 Inch- 12 Inches |
| High Light: | flat webbing sling,webbing sling belt | ||
Eye and Eye web slings type 1 type 2 type 3 type 4 for USA American market from Chinese factory since 1993
About us
Nanjing Dahua special belt knit Co., Ltd. is a professional manufacturer of lifting and lashing products. We engaged in researching, designing, manufacturing, distributing and providing after-sales services. With more than 20 years of experience, our company is keeping on providing top quality products to the world!
| Full company name | Nanjing dahua special belt knit |
| Register date: | 1993-01-01 |
| Business License No. | 91320100608919015B |
| Tax No. | 320112608919015 |
| Export License Registration No.: | 0305519 |
| ISO9001 No. | TUV Rheinland [01100038901] |
| GS No. | TUV Rheinland [S502223800001] [S50222380 0002] |
| Factory | Self-owned for 25 years (since 1993) |
| Workers | 187 workers, 60% with 10+ years experience |
| Export volume | yearly 1200 Tons Ratchet Tie Downs |
| Total Building Size: | 24000 Square meters |
| Office Size: | 3800 Square meters |
| Address: | No.2 Changsheng Road, Getang, Nanjing, China 210048 |
| Website: | www.dahua-sling.com |

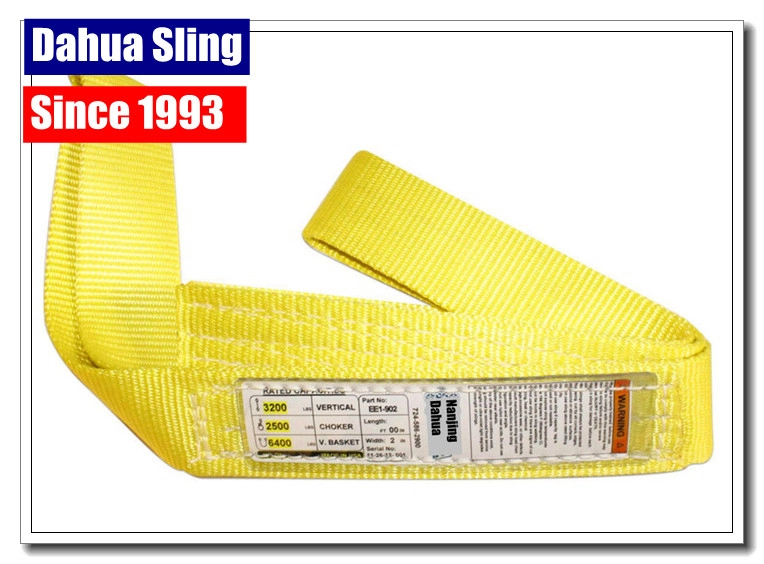

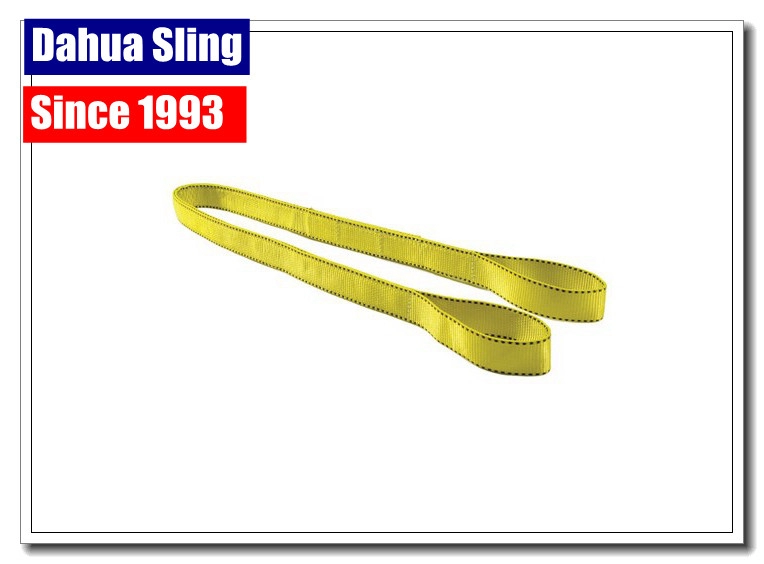

Eye-Eye webbing sling is made from high tenacity polyester webbing with reinforced eye loops at both ends.It can be made from one layer to four layers, which we usually call Simplex webbing sling, Duplex webbing sling, Triplex webbing sling and Quadraplex. And the eyes can be made into Flat eyes, Twisted eyes and Reversed eyes. Eye-eye webbing slings are versatile as they can be used in choker, vertical, or basket hitches.Polyester fabric has low elongation, so it’s better able to hold the load without the risk of shocking.OEM service is also available.
Eye & Eye Slings
 |  |  |  |
|---|
Work Load Limits (Lbs.) | |||||||||||
Choker | Vertical | Basket Hitches | |||||||||
Width | Stock Number | Eye Dimensions (Inches) |  |  | 90° | 60° | 45° | Sling Weight (Lbs.) | Minimum Sling Length (Ft.) | ||
Width | Length | Base 8 Ft. | Adder / Ft. | ||||||||
1" | EE1-601 | 1" | 9" | 900 | 1,200 | 2,400 | 2,070 | 1,690 | .40 | .03 | 4 |
1" | EE1-901 | 1" | 9" | 1,200 | 1,600 | 3,200 | 2,770 | 2,260 | .67 | .05 | 4 |
1" | EE2-601 | 1" | 9" | 1,900 | 2,400 | 4,800 | 4,150 | 3,390 | .59 | .06 | 3 |
1" | EE2-901 | 1" | 9" | 2,500 | 3,200 | 6,400 | 5,540 | 4,520 | 1.00 | .11 | 3 |
1" | EE4-601 | 1" | 12" | 3,800 | 4,800 | 9,600 | 8,310 | 6,780 | 1.22 | .13 | 4 |
1" | EE4-901 | 1" | 12" | 5,000 | 6,400 | 12,800 | 11,080 | 9,050 | 2.07 | .22 | 4 |
1-1/2" | EE1-915 | 1-1/2" | 9" | 1,800 | 2,300 | 4,600 | 3,980 | 3,250 | 1.11 | .09 | 4 |
1-1/2" | EE2-915 | 1-1/2" | 9" | 3,600 | 4,600 | 9,200 | 7,960 | 6,500 | 1.67 | .19 | 3 |
1-1/2" | EE4-915 | 1-1/2" | 12" | 7,200 | 9,200 | 18,400 | 15,930 | 13,000 | 3.44 | .37 | 4 |
2" | EE1-602 | 2" | 12" | 1,900 | 2,400 | 4,800 | 4,150 | 3,390 | .96 | .08 | 4 |
2" | EE1-902 | 2" | 12" | 2,500 | 3,200 | 6,400 | 5,540 | 4,520 | 1.34 | .11 | 4 |
2" | EE2-602 | 2" | 12" | 3,800 | 4,800 | 9,600 | 8,310 | 6,780 | 1.44 | .16 | 4 |
2" | EE2-902 | 2" | 12" | 5,000 | 6,400 | 12,800 | 11,080 | 9,050 | 2.02 | .22 | 4 |
2" | EE4-602 | 2" | 12" | 7,000 | 8,860 | 17,720 | 15,340 | 12,530 | 2.96 | .32 | 4 |
2" | EE4-902 | 2" | 12" | 9,000 | 11,400 | 22,800 | 19,740 | 16,120 | 4.14 | .40 | 4 |
3" | EE1-603 | 1-1/2" | 12" | 2,700 | 3,600 | 7,200 | 6,230 | 5,090 | 1.82 | .14 | 4 |
3" | EE1-903 | 1-1/2" | 12" | 3,800 | 4,800 | 9,600 | 8,310 | 6,780 | 2.29 | .18 | 4 |
3" | EE2-603 | 1-1/2" | 12" | 5,300 | 6,600 | 13,200 | 11,430 | 9,330 | 2.52 | .28 |
|
