Commercial Woven Loading Straps And Slings , Flat Loop Eye To Eye Sling
| Place of Origin: | China |
| Brand Name: | Dahua Sling |
| Certification: | CE TUV/GS |
| Model Number: | eye eye webbing sling |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | USD 30,000 / 20'GP |
| Individual Certificates: | Provide Each Sling | Logo: | We Do It Oursleves |
|---|---|---|---|
| Design: | Designed With A Flat Loop Eye On Each End | Eye Type: | Flat Loop |
| Material: | 100 % Polyester | Layer:: | 1-4 Layers |
| Width:: | 1 In - 12 Inches | Standard: | OSHA Regulations WSTDA Standard |
| Packing: | Blank Or Printed | Sling Type: | Type 3 |
| Item: | Synthetic Web Sling | ||
| High Light: | webbing sling belt,polyester lifting belts | ||
Eye & Eye Flat - Type 3 Synthetic Web Sling WSTDA factory OSHA regulations WSTDA standard
All our lifting slings and lifting straps are made of highly durable, heavy-duty polyester webbing. These lifting slings (sometimes called lifting straps) are in stock in numerous widths and lengths. Slings come in various styles: flat eye and eye, twisted eye, endless, and endless round to meet your specific application.
These lifting slings meet or exceed all WSTDA standards and OSHA regulations.
We manufacture our lifting slings and straps and can quickly custom build whatever type of lifting sling your need.
All lifting straps manufactured or provided by NANJING DAHUA meet or exceed all OSHA regulations as well as WSTDA standards.

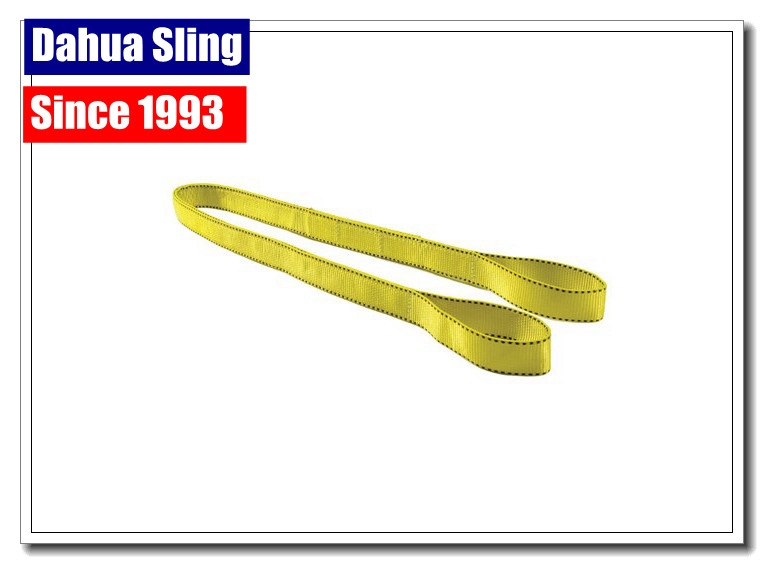

Flat Eye & Eye Lifting Slings
Flat Eye & Eye (EE) lifting slings are made with a flat loop eye on each end. The slings have a loop eye opening on the same plane as the sling body.
This type of sling goes by a variety of names including flat eye and eye, eye and eye and double eye sling.
The flat eye and eye slings are versatile and flexible. They can be used with all three hitches: vertical, basket and choker.
Flat Eye and Eye Lifting Sling Specification/Capacity Chart
Eye & Eye Flat - Type 3 Synthetic Web Sling
| Part # | Web Width | Ply | Rated Capacity in Pounds | Eye Length | Eye Width | |||||
| Rigging Technique | Basket Leg Angle | |||||||||
| Vertical | Choker | Basket | 60° | 45° | 30° | |||||
| EEF-1-901 | 1" | 1 | 1,600 | 1,200 | 3,200 | 2,800 | 2,300 | 1,600 | 8" | 1" |
| EEF-2-901 | 2 | 3,200 | 2,500 | 6,400 | 5,500 | 4,500 | 3,200 | 8" | 1" | |
| EEF-3-901 | 3 | 4,100 | 3,300 | 8,200 | 7,100 | 5,800 | 4,100 | 12" | 1" | |
| EEF-4-901 | 4 | 6,100 | 4,900 | 12,200 | 10,500 | 8,600 | 6,100 | 12" | 1" | |
| EEF-1-902 | 2" | 1 | 3,200 | 2,500 | 6,400 | 5,500 | 4,500 | 3,200 | 10" | 2" |
| EEF-2-902 | 2 | 6,400 | 5,000 | 12,800 | 11,100 | 9,000 | 6,400 | 10" | 2" | |
| EEF-3-902 | 3 | 8,200 | 6,600 | 16,500 | 14,300 | 11,600 | 8,200 | 12" | 2" | |
| EEF-4-902 | 4 | 12,200 | 9,800 | 24,400 | 21,100 | 17,200 | 12,200 | 12" | 2" | |
| EEF-1-903 | 3" | 1 | 4,800 | 3,800 | 9,600 | 8,300 | 6,800 | 4,800 | 11" | 1.5" |
| EEF-2-903 | 2 | 8,900 | 7,200 | 17,800 | 15,400 | 12,600 | 8,900 | 11" | 1.5" | |
| EEF-3-903 | 3 | 12,300 | 9,900 | 24,600 | 21,300 | 17,400 | 12,300 | 15" | 1.5" | |
| EEF-4-903 | 4 | 18,000 | 13,500 | 36,000 | 31,100 | 25,400 | 18,000 | 15" | 1.5" | |
| EEF-1-904 | 4" | 1 | 6,400 | 5,000 | 12,800 | 11,100 | 9,000 | 6,400 | 12" | 2" |
| EEF-2-904 | 2 | 12,000 | 9,600 | 24,000 | 20,800 | 17,000 | 12,000 | 12" | 2" | |
| EEF-3-904 | 3 | 15,300 | 12,200 | 30,600 | 26,500 | 21,600 | 15,300 | 16" | 2" | |
| EEF-4-904 | 4 | 24,000 | 18,000 | 48,000 | 41,500 | 33,900 | 24,000 | 16" | 2" | |
| EEF-1-905 | 5" | 1 | 8,000 | 6,400 | 16,000 | 13,800 | 11,300 | 8,000 | 14" | 1.75" |
| EEF-2-905 | 2 | 14,250 | 11,400 | 28,500 | 24,600 | 20,100 | 14,250 | 14" | 1.75" | |
| EEF-3-905 | 3 | 22,500 | 18,000 | 45,000 | 38,900 | 31,800 | 22,500 | 18" | 2.5" | |
| EEF-4-905 | 4 | 30,000 | 22,500 | 60,000 | 51,900 | 42,400 | 30,000 | 18" | 2.5" | |
|
| ||||||||||
