Heavy Duty Grey Flat Lifting Slings For Cargo 4000kg ISO4878 Standard
| Place of Origin: | China |
| Brand Name: | Dahua Sling |
| Certification: | CE TUV/GS |
| Model Number: | eye eye webbing sling |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | USD 30,000 / 20'GP |
Detailed Product Description
| Individual Certificates: | Provide Each Sling | Logo: | We Do It Oursleves |
|---|---|---|---|
| Eye Protector: | White Black Or Same As Webbing | Eye Type: | Flat Folded |
| Material: | 100 % Polyester | Safety Factor: | 7:1 |
| Layer:: | Single-layer, Double-layer | Width:: | 120mm |
| Standard: | EN 1492-1 | Lifting Capacity: | 4000kg |
| High Light: | webbing sling belt,polyester lifting belts | ||

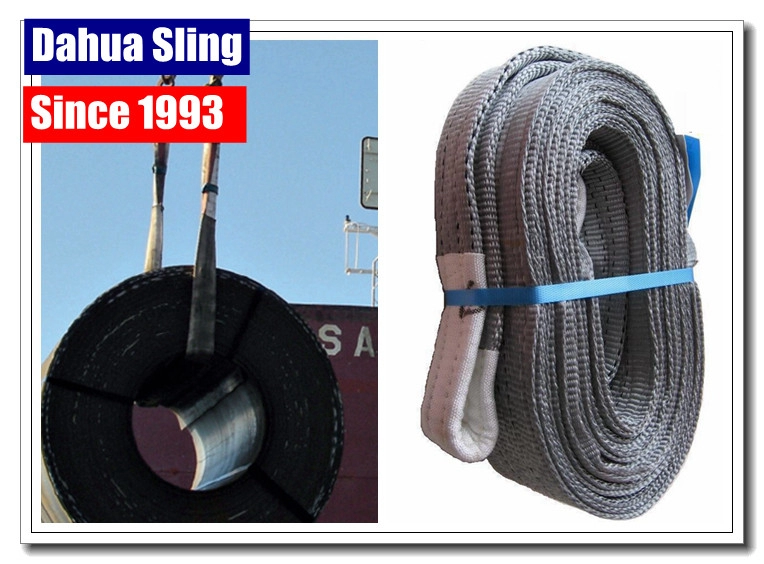

4000kg grey Polyester flat eye-eye webbing lifting sling doule ply EN 1492-1 European Safety Factor 7:1
Product Description
Meet or exceed US standard ASMEB30.9
Class 7 webbing possessing a minimum certified tensile strength of 9800LBS/in width
Low strain ,wear -resistance,long life material ( PES)
Safety factor 5:1
Eyes are reforced with polyester wear pads
Lengths are measured from bearing point to bearing point
Class 7 webbing possessing a minimum certified tensile strength of 9800LBS/in width
Low strain ,wear -resistance,long life material ( PES)
Safety factor 5:1
Eyes are reforced with polyester wear pads
Lengths are measured from bearing point to bearing point
| Eye-Eye Sling (Type 3 and 4) | |||||||
| Plies of Web | Model | Wed Width (in.) | Eye Length (in.) | Rated Capacity (lbs.) | base Length(ft) | ||
| Vertical | Chocker | Vertical Basket | |||||
| One Ply | SEE1-1 | 1 | 8-1/2 | 1200 | 960 | 2400 | 3 |
| SEE1-2 | 2 | 10 | 2400 | 1920 | 4800 | 3 | |
| SEE1-3 | 3 | 11 | 3600 | 2880 | 7200 | 3 | |
| SEE1-4 | 4 | 12 | 4800 | 3840 | 9600 | 3 | |
| SEE1-5 | 5 | 14 | 6000 | 4800 | 12000 | 3 | |
| SEE1-6 | 6 | 16 | 7200 | 5760 | 14400 | 3 | |
| Two Ply | SEE2-1 | 1 | 8-1/2 | 2400 | 2560 | 4800 | 3 |
| SEE2-2 | 2 | 10 | 4800 | 3840 | 9600 | 3 | |
| SEE2-3 | 3 | 11 | 6500 | 5200 | 13000 | 3 | |
| SEE2-4 | 4 | 12 | 8600 | 6880 | 17200 | 3 | |
| SEE2-5 | 5 | 14 | 10200 | 8160 | 20400 | 3 | |
| SEE2-6 | 6 | 16 | 12300 | 9840 | 24600 | 3 | |
| Full company name | Nanjing dahua special belt knit Co., Ltd |
| Register date: | 1993-01-01 |
| Business License No. | 91320100608919015B |
| Tax No. | 320112608919015 |
| Export License Registration No.: | 0305519 |
| ISO9001 No. | TUV Rheinland [01100038901] |
| GS No. | TUV Rheinland [S502223800001] [S50222380 0002] |
| Factory | Self-owned for 25 years (since 1993) |
| Workers | 187 workers, 60% with 10+ years experience |
| Export volume | yearly 1200 Tons Ratchet Tie Downs |
| Total Building Size: | 24000 Square meters |
| Office Size: | 3800 Square meters |
| Address: | No.2 Changsheng Road, Getang, Nanjing, China 210048 |
| Website: | www.dahua-sling.com |
Eye-Eye webbing sling is made from high tenacity polyester webbing with reinforced eye loops at both ends.It can be made from one layer to four layers, which we usually call Simplex webbing sling, Duplex webbing sling, Triplex webbing sling and Quadraplex. And the eyes can be made into Flat eyes, Twisted eyes and Reversed eyes. Eye-eye webbing slings are versatile as they can be used in choker, vertical, or basket hitches.Polyester fabric has low elongation, so it’s better able to hold the load without the risk of shocking.OEM service is also available.
| 1T WEBBING SLING | Modelo | Color | Safety factor | Widthmm) | M.B.S(kg) |
 | 5DEE010 | Purple | 5:1 | 25 | 5T |
| 6DEE010 | Purple | 6:1 | 25/38 | 6T | |
| 7DEE010 | Purple | 7:1 | 30/50/60 | 7T | |
| 8DEE010 | Purple | 8:1 | 50 | 8T |
| 2T WEBBING SLING | Modelo | Color | Safety factor | Widthmm) | M.B.S(kg) |
 | 5DEE020 | Green | 5:1 | 50 | 10T |
| 6DEE020 | Green | 6:1 | 50 | 12T | |
| 7DEE020 | Green | 7:1 | 50/60 | 14T | |
| 8DEE020 | Green | 8:1 | 65 | 16T |
| 3T WEBBING SLING | Modelo | Color | Safety factor | Widthmm) | M.B.S |
 | 5DEE030 | Yellow | 5:1 | 75 | 15T |
| 6DEE030 | Yellow | 6:1 | 75 | 18T | |
| 7DEE030 | Yellow | 7:1 | 75/90 | 21T | |
| 8DEE030 | Yellow | 8:1 | 95 | 24T |
| 4T WEBBING SLING | Modelo | Color | Safety factor | Widthmm) | M.B.S |
 | 5DEE040 | Grey | 5 | 100 | 20T |
| 6DEE040 | Grey | 6 | 100 | 24T | |
| 7DEE040 | Grey | 7 | 100/120 | 28T | |
| 8DEE040 | Grey | 8 | 120 | 32T |
| 5T WEBBING SLING | Modelo | Color | Safety factor | Widthmm) | M.B.S(kg) |
 | 5DEE050 | Red | 5:1 | 125 | 25T |
| 6DEE050 | Red | 6:1 | 125 | 30T | |
| 7DEE050 | Red | 7:1 | 125/150 | 35T | |
| 8DEE050 | Red | 8:1 | 150 | 40T |
| 6T WEBBING SLING | Modelo | Color | Safety factor | Widthmm)) | M.B.S(kg) |
 | 5DEE060 | Brown | 5:1 | 150 | 30T |
| 6DEE060 | Brown | 6:1 | 150 | 36T | |
| 7DEE060 | Brown | 7:1 | 150/180 | 42T | |
| 8DEE060 | Brown | 8:1 | 180 | 48T |
| 8T WEBBING SLING | Modelo | Color | Safety factor | Widthmm) | M.B.S |
 | 5DEE080 | Blue | 5:1 | 200 | 40T |
| 6DEE080 | Blue | 6:1 | 200 | 48T | |
| 7DEE080 | Blue | 7:1 | 200/240 | 56T | |
| 8DEE080 | Blue | 8:1 | 240 | 64T |
| 10T WEBBING SLING | Modelo | Color | Safety factor | Widthmm) | M.B.S |
 | 5DEE100 |
|
