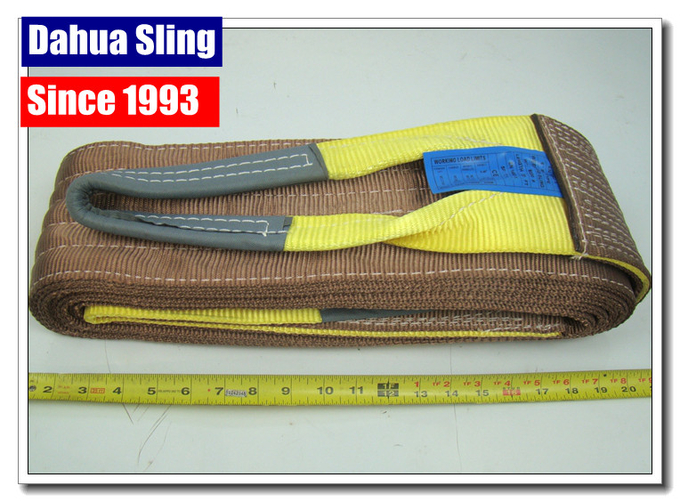

Light Duty Flat Lifting Slings Industrial Lifting Belt 4800 Lb Basket Capacity
| Place of Origin: | China |
| Brand Name: | Dahua Sling |
| Certification: | CE TUV/GS |
| Model Number: | eye eye webbing sling |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | USD 30,000 / 20'GP |
| Packaging Details: | Shrink film and carton pallets |
| Basket Capacity:: | 4800 Lb | Choker Capacity:: | 1900 Lb |
|---|---|---|---|
| Color:: | Yellow | Eye Length:: | 6" |
| Material: | 100 % Polyester | Specification:: | WSTDA-WS-1 |
| Width:: | 1 In - 12 Inches | Type:: | Web Sling |
| Packing: | Blank Or Printed | Sling Type: | Type 3 Eye & Eye |
| Thickness:: | 2-Ply | Applications:: | General Lifting Purposes, Including Raising, Lowering, Or Suspending Loads |
| Vertical Capacity: | 2400lb | ||
| High Light: | webbing sling belt,polyester lifting belts | ||
Polyester Slings Light Duty Slings serial number identification serial number identification
Meet or exceed US standard ASMEB30.9
Class 7 webbing possessing a minimum certified tensile strength of 9800LBS/in width
Low strain ,wear -resistance,long life material ( PES)
Safety factor 5:1

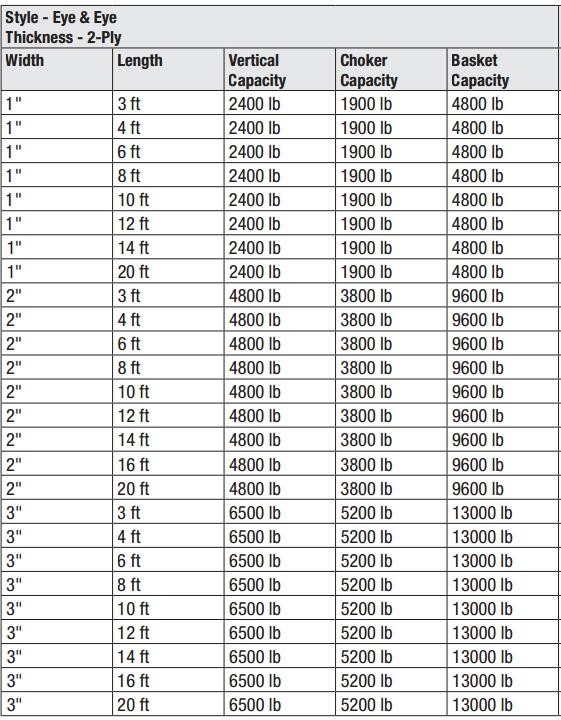

| Eye-Eye Sling (Type 3 and 4) | |||||||
| Plies of Web | Model | Wed Width (in.) | Eye Length (in.) | Rated Capacity (lbs.) | base Length(ft) | ||
| Vertical | Chocker | Vertical Basket | |||||
| One Ply | SEE1-1 | 1 | 8-1/2 | 1200 | 960 | 2400 | 3 |
| SEE1-2 | 2 | 10 | 2400 | 1920 | 4800 | 3 | |
| SEE1-3 | 3 | 11 | 3600 | 2880 | 7200 | 3 | |
| SEE1-4 | 4 | 12 | 4800 | 3840 | 9600 | 3 | |
| SEE1-5 | 5 | 14 | 6000 | 4800 | 12000 | 3 | |
| SEE1-6 | 6 | 16 | 7200 | 5760 | 14400 | 3 | |
| Two Ply | SEE2-1 | 1 | 8-1/2 | 2400 | 2560 | 4800 | 3 |
| SEE2-2 | 2 | 10 | 4800 | 3840 | 9600 | 3 | |
| SEE2-3 | 3 | 11 | 6500 | 5200 | 13000 | 3 | |
| SEE2-4 | 4 | 12 | 8600 | 6880 | 17200 | 3 | |
| SEE2-5 | 5 | 14 | 10200 | 8160 | 20400 | 3 | |
| SEE2-6 | 6 | 16 | 12300 | 9840 | 24600 | 3 | |
CAUTIONS:
- Do not attempt to use sling above rated lifting capacity.
- When selecting a sling,it is very important to consider the angles at which the sling will be used.
- Slings are subject to cutting when ifting items with sharp egeds.In this case,always use protective sleeves
- Do not use a damaged sling,and se only if trained.
- Do not tie knots in sling webbing as strength is greatly reduced.
- Never drag a sling beneth from a load which is resting on it.
- Chemical active environments can affect the strength of slings
- Inspect slings weekly or more frequently depending on the sling use conditions.
- Always strore slings in a cool,dry and dark place to extend the working lift.
- Always read and understand the operating instructions before use.
- Failure to comply with this warning may result in serious load damageand death or injury.
