Eye & Eye Twist Type Flat Web Slings For Lifting , Pallet Lifting Slings With Tuff Tag
| Place of Origin: | China |
| Brand Name: | Dahua Sling |
| Certification: | CE TUV/GS |
| Model Number: | eye eye webbing sling |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | USD 30,000 / 20'GP |
Detailed Product Description
| Individual Certificates: | Provide Each Sling | Logo: | We Do It Oursleves |
|---|---|---|---|
| Eye Protector: | White Black Or Same As Webbing | Eye Type: | Eye & Eye Twist - Type 4 |
| Material: | 100 % Polyester | Layer:: | 1-4 Layers |
| Width:: | 1 In - 12 Inches | Standard: | OSHA Regulations WSTDA Standard |
| Packing: | Blank Or Printed | Sling Type: | Type 4 |
| Item: | Synthetic Web Sling | Eye Size:: | 10.00 InL |
| High Light: | flat webbing sling,polyester lifting belts | ||

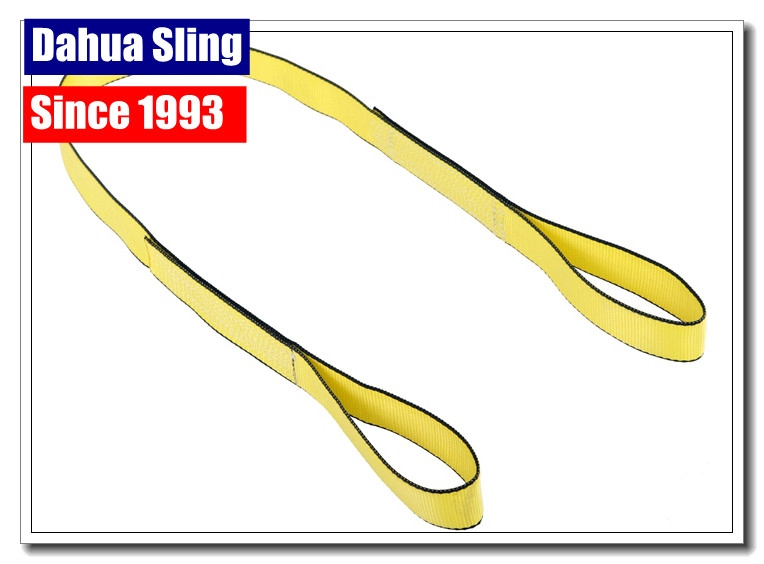

Heavy Duty Synthetic Web SlingsEye & Eye Twist - Type 4 Synthetic Web Sling Yellow Polyester tuff tag
All our lifting slings and lifting straps are made of highly durable, heavy-duty polyester webbing. These lifting slings (sometimes called lifting straps) are in stock in numerous widths and lengths. Slings come in various styles: flat eye and eye, twisted eye, endless, and endless round to meet your specific application.
These lifting slings meet or exceed all WSTDA standards and OSHA regulations.
We manufacture our lifting slings and straps and can quickly custom build whatever type of lifting sling your need.
All lifting straps manufactured or provided by NANJING DAHUA meet or exceed all OSHA regulations as well as WSTDA standards.
Eye & Eye Twist - Type 4 Synthetic Web Sling
| Part # | Width | Ply | Rated Capacity in Pounds | Eye Length | Eye Width | |||||
| Rigging Technique | Basket Leg Angle | |||||||||
| Vertical | Choker | Basket | 60° | 45° | 30° | |||||
| EET1-901 | 1" | 1 | 1,600 | 1,200 | 3,200 | 2,800 | 2,300 | 1,600 | 8" | 1" |
| EET2-901 | 2 | 3,200 | 2,500 | 6,400 | 5,500 | 4,500 | 3,200 | 8" | 1" | |
| EET3-901 | 3 | 4,100 | 3,300 | 8,200 | 7,100 | 5,800 | 4,100 | 12" | 1" | |
| EET4-901 | 4 | 6,100 | 4,900 | 12,200 | 10,500 | 8,600 | 6,100 | 12" | 1" | |
| EET1-902 | 2" | 1 | 3,200 | 2,500 | 6,400 | 5,500 | 4,500 | 3,200 | 10" | 2" |
| EET2-902 | 2 | 6,400 | 5,000 | 12,800 | 11,100 | 9,000 | 6,400 | 10" | 2" | |
| EET3-902 | 3 | 8,200 | 6,600 | 16,500 | 14,300 | 11,600 | 8,200 | 12" | 2" | |
| EET4-902 | 4 | 12,200 | 9,800 | 24,400 | 21,100 | 17,200 | 12,200 | 12" | 2" | |
| EET1-903 | 3" | 1 | 4,800 | 3,800 | 9,600 | 8,300 | 6,800 | 4,800 | 11" | 1.5" |
| EET2-903 | 2 | 8,900 | 7,200 | 17,800 | 15,400 | 12,600 | 8,900 | 11" | 1.5" | |
| EET3-903 | 3 | 12,300 | 9,900 | 24,600 | 21,300 | 17,400 | 12,300 | 15" | 1.5" | |
| EET4-903 | 4 | 18,000 | 13,500 | 36,000 | 31,100 | 25,400 | 18,000 | 15" | 1.5" | |
| EET1-904 | 4" | 1 | 6,400 | 5,000 | 12,800 | 11,100 | 9,000 | 6,400 | 12" | 2" |
| EET2-904 | 2 | 12,000 | 9,600 | 24,000 | 20,800 | 17,000 | 12,000 | 12" | 2" | |
| EET3-904 | 3 | 15,300 | 12,200 | 30,600 | 26,500 | 21,600 | 15,300 | 16" | 2" | |
| EET4-904 | 4 | 24,000 | 18,000 | 48,000 | 41,500 | 33,900 | 24,000 | 16" | 2" | |
| EET1-905 | 5" | 1 | 8,000 | 6,400 | 16,000 | 13,800 | 11,300 | 8,000 | 14" | 1.75" |
| EET2-905 | 2 | 14,250 | 11,400 | 28,500 | 24,600 | 20,100 | 14,250 | 14" | 1.75" | |
| EET3-905 | 3 | 22,500 | 18,000 | 45,000 | 38,900 | 31,800 | 22,500 | 18" | 2.5" | |
| EET4-905 | 4 | 30,000 | 22,500 | 60,000 | 51,900 | 42,400 | 30,000 | 18" | 2.5" | |
| EET1-906 | 6" | 1 | 9,600 | 7,600 | 19,200 | 16,600 | 13,600 | 9,600 | 16" | 2" |
| EET2-906 | 2 | 18,000 | 14,500 | 36,000 | 31,100 | 25,400 | 18,000 | 16" | 2" | |
| EET3-906 | 3 | 23,000 | 18,400 | 46,000 | 39,800 | 32,500 | 23,000 | 18" | 3" | |
| EET4-906 | 4 | 36,000 | 24,000 | 72,000 | 62,300 | 50,900 | 36,000 | 18" | 3" | |
| EET1-908 | 8" | 1 | 12,800 | 10,000 | 25,600 | 22,200 | 18,100 | 12,800 | 20" | 3" |
| EET2-908 | 2 | 22,800 | 18,000 | 45,600 | 39,500 | 32,200 | 22,800 | 20" | 3" | |
| EET3-908 | 3 | 34,000 | 27,200 | 68,000 | 58,900 | 48,000 | 34,000 | 24" | 4" | |
| EET4-908 | 4 | 45,000 | 36,000 | 90,000 | 77,900 | 63,600 | 45,000 | 24" | 4" | |
| EET1-910 | 10" | 1 | 16,000 | 12,800 | 32,000 | 27,700 | 22,600 | 16,000 | 24" | 3.5" |
| EET2-910 | 2 | 28,000 | 22,500 | 56,000 | 48,500 | 39,500 | 28,000 | 24" | 3.5" | |
| EET3-910 | 3 | 36,000 | 28,500 | 72,000 | 62,300 | 50,900 | 36,000 | 24" | 5" | |
| EET4-910 | 4 | 55,000 |
| |||||||
