Single Ply Round Endless Sling Heavy Duty Recovery Straps With Logo Printed
| Place of Origin: | China |
| Brand Name: | Dahua Sling |
| Certification: | BS EN 1492-1:2000 |
| Model Number: | web sling |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | USD 30,000 / 20'GP |
| Logo: | We Do It Oursleves | Eye Protector: | White Black Or Same As Webbing |
|---|---|---|---|
| Material: | 100 % Polyester | Layer:: | 1 Layer |
| Packing: | Blank Or Printed | Sling Type: | Endless Flat Webbing Sling |
| W.L.L: | 2000KG | COLOR: | Green |
| Standard: | BS EN 1492-1:2000 | Transport Package:: | Carton |
| High Light: | polyester round slings,round webbing sling | ||

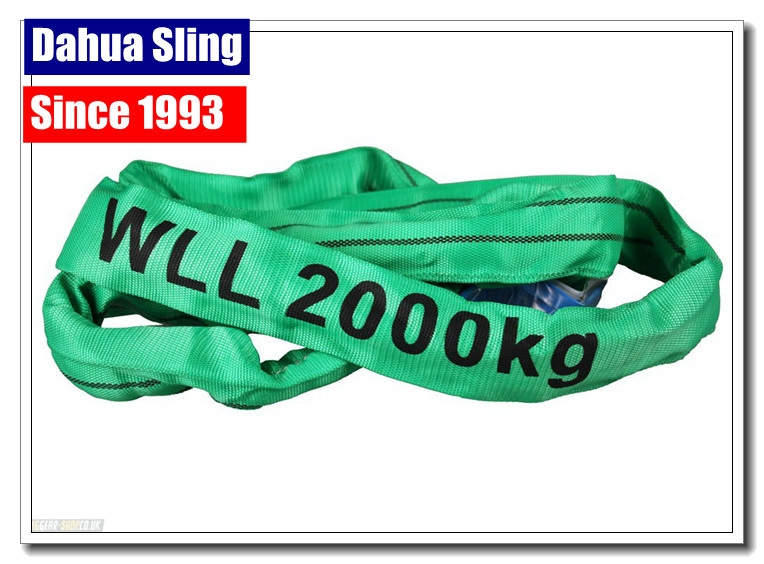

Polyester Endless Round Sling/Ce GS Certificated/W. L. L. 2t
Product Description
| Product Name | round sling |
| Material | high tenacity polyester |
| Width | 60mm |
| Length | from 1m to 10m |
| W.L.L. | 2T |
| Safety Factor | 6:1,7:1,8:1 |
| Layer | single ply or double ply |
| Color | green |
| Standard | EN1492-2:2008 |
| Elongation | >=7% |
| Lifting Eye types | no eye |
Material
Polyester:PE
Used mainly where acid conditions are present or minimum stretch is desired,polyester is unaffected by common acid and hot bleaching agents,it is not suitable for use with concentrated sulfuric acid,alkaline or at temperature in excess of 100'C or less than -40'C,stretch at rated capacity is approximately 3%
Nylon:PA
The most widely used general-purpose synthetic web sling,is unaffected by grease and oil.It has good chemical resistance to aldehyde,ethers,and strong alkalis:But is not suitable for use with acids and bleaching agents or at temperatures in excess of 100'C or less than -40'C.Stretch at rated capacity is approximately 6-8%.And if wet,maybe the strength will be less over 10%
Polypropyline:PP
Polypropyline is little affected by acids or alkalis and suitable for application where the highest resistance to chemicals other than solvents is required.Using temperatures scope is from -40'C up to 80'C
High-performance synthetic sling is made of a super strong polyethylene fiber.This sling is up to 15 times stronger than steel and weight-for-weight is 40% stronger than competing polyester sling.It has high energy absorption and low elongation,sling floats on water,and is extremely resistant to abrasion,moisture,UV rays and chemicals.As a result,it has an almost unlimited range of application.Providing maximum strength and security for minimum weight.
TS-R01 Round sling ( Single Ply Sleeve )
| Item No. | WLL (kg) | Dia (mm) | L(m) | S.F 7:1 | |
| Min | Max | ||||
| TS-R01-01 | 1000 | 6 | 0.5 | 100 | 0.30 |
| TS -R01-02 | 2000 | 7 | 0.5 | 100 | 0.44 |
| TS -R01-03 | 3000 | 8 | 0.5 | 100 | 0.65 |
| TS -R01-04 | 4000 | 9 | 1.0 | 100 | 0.83 |
| TS -R01-05 | 5000 | 11 | 1.0 | 100 | 1.01 |
| TS -R01-06 | 6000 | 12 | 1.0 | 100 | 1.19 |
| TS -R01-08 | 8000 | 13 | 1.0 | 100 | 1.50 |
| TS -R01-10 | 10000 | 15 | 2.0 | 100 | 1.95 |
| TS -R01-12 | 12000 | 16 | 2.0 | 100 | 2.46 |
| TS -R01-15 | 15000 | 18 | 2.0 | 100 | 2.97 |
| TS -R01-20 | 20000 | 20 | 2.5 | 100 | 4.66 |
| TS -R01-25 | 25000 | 24 | 2.5 | 100 | 5.84 |
| TS -R01-30 | 30000 | 32 | 2.5 | 100 | 9.23 |
| TS -R01-40 | 40000 | 40 | 2.5 | 100 | 12.1 |
| TS -R01-50 | 50000 | 45 | 2.5 | 100 | 14.1 |
| TS -R01-60 | 60000 | 65 | 4.0 | 100 | 17.3 |
| TS -R01-80 | 80000 | 70 | 4.0 | 100 | 22.2 |
| TS -R01-100 | 100000 | 80 | 4.0 | 100 | 26.0 |
| TS -R01-120 | 120000 | 5.0 | 100 | ||
| TS -R01-150 | 150000 | 5.0 | 100 | ||
| TS -R01-200 | 200000 | 120 | 5.0 | 100 | 64.0 |
| TS -R01-250 | 250000 | 5.0 | 100 | ||
| TS -R01-300 | 300000 | 160 | 5.0 | 100 | 79.0 |
| TS -R01-350 | 350000 | 5.0 | 100 | ||
| TS -R01-400 | 400000 | 200 | 5.0 | 100 | 98.4 |
| TS -R01-450 | 450000 | 5.0 | 100 | ||
| TS -R01-500 | 500000 | 220 | 8.0 | 100 | 121.2 |
TS-R02 Round sling (Double Ply Sleeve )
| Item No. | WLL (kg) | Dia (mm) | L(m) | S.F 7:1 g/m | |
| Min | Max | ||||
| TS-R02-01 | 1000 | 15 | 0.5 | 100 | 0.33 |
| TS -R02-02 | 2000 | 16 | 0.5 | 100 | 0.47 |
| TS -R02-03 | 3000 | 18 | 0.5 | 100 | 0.68 |
| TS -R02-04 | 4000 | 20 | 1.0 | 100 | 0.85 |
| TS -R02-05 | 5000 | 25 | 1.0 | 100 | 1.06 |
| TS -R02-06 | 6000 | 27 | 1.0 | 100 | 1.28 |
| TS -R02-08 | 8000 | 28 | 1.0 | 100 | 1.59 |
| TS -R02-10 | 10000 |
| |||
