Multi Purpose Polyester Endless Round Slings 1000kg - 100,000kg Eco Friendly
| Place of Origin: | Nnajing, China |
| Brand Name: | Dahua Sling |
| Certification: | CE TUV/GS ISO |
| Model Number: | Round sling |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | 8 USD |
| Packaging Details: | Shrink film, carton and pallets |
| Year Of Establish: | 1993 | Location: | Nanjing |
|---|---|---|---|
| Usage: | LIFTING | Color: | Red |
| Surface: | Seamless Tubular Cover | Item: | Polyester Endless Round Slings |
| W.L.L: | 1000kg To 100,000kg | Standard Of Endless Round Lifting Sling: | Standard European Standard EN1492-2:2000 And Chinese Standard JB/T8521-2007 |
| Round Sling Capacity: | Capacity 1t~3000t | ||
| High Light: | polyester round slings,round lifting slings | ||
Round Polyester Lifting Slings (endless round slings). Conforms to BS EN 1492-2 - Range from 1000kg to 100,000kg
About Polyester Round Slings for Lifting
Polyester is a Synthetic man made material that is lightweight and is a certified lifting sling to conform with EN 1492-2:2000 it makes a very cost effective lifting sling that is soft to touch and much less likely to cause damage the material being lifted; it will not cause the type of injuries to the user associated with wire rope sling (cuts caused by broken wires, manual handling or impact injuries). Round lifting slings are more compact and lightweight than both wire rope or chain slings (Dyneema is lighter and stronger) and as a result is much easier to handle.
Fibre round slings are comparatively cheap compared to most alternative lifting slings and tend to be more flexible, lighter, and have a better FOS, the end result being that the customer tends to save money with the purchase and achieves greater productivity from staff operating.
On the negative side endless slings do have less abrasive resistance though this can be overcome by using a wear sleeve made from either polyester or from polyurethane (round the sling or bonded onto the sling, Secutex for example). Other alternative method to provide sling protection would be to use steel end fitting such as a Joker hook or Grade 80/100 master rings and hooks; or the use of corner protectors, contact us for further alternatives.
Our preference is to supply top quality polyester round lifting slings made in the UK as they are well made and the manufacturer can provide a comprehensive quality and technical service. We carry stocks of 1000kg, 2000kg, 3000kg, 4000kg, 5000kg etc... in many different lengths though also make special polyester endless lifting slings to the customers specification up to 100 tonne SWL.
Wear Protection Sleeves
Single Part Wear Resistance Protective Sleeve - Covers a single part
Double Part Wear Resistance Protective Sleeve - Covers both parts
Sling Capacities and Colour Codes
| Colour Code | Sling Width |  |  |  |  |  |
| Straight x WLL (kg) | Choked x 0.8 WLL (kg) | Basket x 2 WLL (kg) | 45 degree basket x 1.8 WLL (kg) | 90 degree basket x 1.4 WLL (kg) | ||
| Violet (purple) | 50mm | 1000 | 800 | 2000 | 1800 | 1400 |
| Green | 52mm | 2000 | 1600 | 4000 | 3600 | 2800 |
| Yellow | 60mm | 3000 | 2400 | 6000 | 5400 | 4200 |
| Grey | 70mm | 4000 | 3200 | 8000 | 7200 | 5600 |
| Red | 80mm | 5000 | 4000 | 10000 | 9000 | 7000 |
| Brown | 90mm | 6000 | 4800 | 12000 | 10800 | 8400 |
| Blue | 104mm | 8000 | 6400 | 16000 | 14400 | 11200 |
| Orange | 110mm | 10000 | 8000 | 20000 | 18000 | 14000 |
| Orange | 128mm | 12000 | 9600 | 24000 | 21600 | 16800 |
| Orange | 150mm | 15000 | 12000 | 30000 | 27000 | 21000 |
| Orange | 152mm | 20000 | 16000 | 40000 | 36000 | 28000 |
| Orange | 175mm | 25000 | 20000 | 50000 | 45000 | 35000 |
| Orange | 175mm | 30000 | 24000 | 60000 | 54000 | 42000 |
| Orange | - | 40000 | 32000 | 80000 | 72000 | 56000 |
| Orange | - | 50000 | 40000 | 100000 | 90000 | 70000 |
| Orange | - | 60000 | 48000 | 120000 | 108000 | 84000 |
| Orange | - | 70000 | 56000 | 140000 | 126000 | 98000 |
| Orange | - | 80000 | 64000 | 160000 | 144000 | 112000 |
| Orange | - | 90000 | 72000 | 180000 | 162000 | 126000 |
| Orange | - | 100000 | 80000 | 200000 | 180000 | 14000 |
Use and Inspection: Before each use, all slings, fastenings and attachments should be inspected for defects and damage. Additional inspections should be performed on a regular basis. Damaged or defective slings should be removed and destroyed immediately.A sling should be removed from service if damage such as the following is visible:

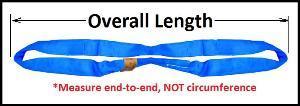

| How to Order: To select your round sling, we will need to know:
Using this information, we will match the correct round sling for your application. Each Round Sling is marked with a Rated Capacities Tag for your reference in the field. |
These slings adapt to all types, sizes, and load configurations while remaining lightweight and easy to rig, clean, and store. They offer excellent resistance to UV light, rot, and mildew. They also do not lose any strength in water and reach only 3% elongation.
This product can be exposed to high heat up to a maximum of 180°. Additionally, the absence of any metal parts in this product eliminates rust concerns and reduces the need for wear pads.
Rated Loads cited are based on minimum pin diameters shown in WSTDA-WS-1. Pin Diameters smaller than these may reduce the rated load of the sling.
Colour guidelines for polyester round sling covers are widely used to indicate the vertical rated load of round slings: however this is not followed by some manufacturers. Always select and use round slings by the rated load as shown on the sling identification tag.
