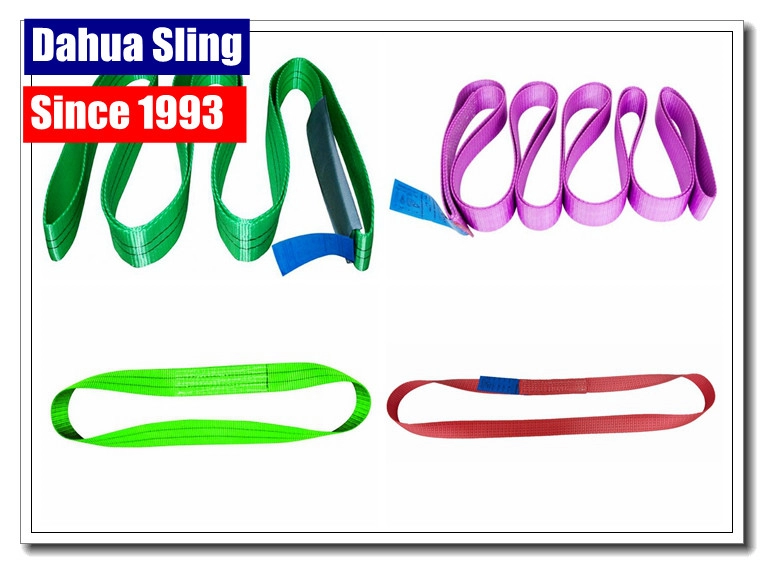

1 Ply Endless Nylon Lifting Slings , Nylon Rigging Slings For Heavy Duty Liftin
| Place of Origin: | China |
| Brand Name: | Dahua Sling |
| Certification: | BS EN 1492-1:2000 |
| Model Number: | web sling |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | USD 30,000 / 20'GP |
| Logo: | We Do It Oursleves | Eye Protector: | White Black Or Same As Webbing |
|---|---|---|---|
| Material: | 100 % Polyester | Layer:: | 1 Layer |
| Packing: | Blank Or Printed | Sling Type: | Endless Flat Webbing Sling |
| W.L.L: | 3000KG | Standard: | BS EN 1492-1:2000 |
| High Light: | endless webbing sling,endless lifting straps | ||
Model NO.: flat endless sling
Material: Polyester
Fixed Form: Welding Type
Rope Core Type: Polyester Core
Shape: Flat
Sling Color: Green
Brand: Cargosafe or OEM
Specification: Wll 500kg to WLL20ton, length is customised
Type: Synthetic Fibre Sling
Lifting Capacity: 500kg to 20ton
Lifting Eye Type: Flat Eye
Power Source: Lever
Certification: GS, SGS, CE, ISO 9001
Length: Customized
Trademark: DAHUA SLING
Origin: Nanjing, China
1. Material: Polyester
2. Width: 2"
3. Length: 20' or upon your request
4. MBS: 31, 000 lbs
5. End Fittings: Eye hook, Flat eye & Twisted eye
6. Colour: Orange/Yellow/upon your request
PS: 3" and 4" tow straps are also available upon your request
Our winch straps are manufactured from heavy duty, high quality polyester. Ranging from 2" to 4", the winch strap can handle any load big or small. They are ideal for pulling, binding, and towing all kinds of loads, the cars, boats, pickup trucks.
Features
Single Use - One Way
Low cost, simple design
Easy to use
Stronger and more compact than rope or wire rope alternative solutions.
Can be attached or built in to a structure or load, but must only be used to perform a single complete lift.
Saves time and cost on-site slinging and reslinging loads.
Fully manufactured, labelled and tested in accordance with BS EN 1492-1:2000 or upon request, manufactured to your commercial specifications with supporting technical file.
Available as standard in 25mm, 35mm and 50mm widths in endless format or as bespoke units with loops each end.
Detailed specifications
We recommend the use of wear sleeves to prolong the life of these lifting slings. Specialised Cargo Nets are also available constructed from webbing using the same 7:1 safety factor.
Also available with metal end fittings.
| www. dahua-sling.com |
When using flat woven webbing slings always:
• Store and handle belt slings correctly.
• Inspect belt slings and accessories before use and before placing into storage.
• Follow safe slinging practices, as given overleaf.
• Position the bight for choke lift at 120° (natural angle).
• Position the sling so that the load is uniformly spread over its width and protect the sling from sharp edges.
• Apply the correct mode factor for the slinging arrangement.
When using flat woven webbing slings never:
• Attempt to shorten, knot or tie belt slings.
• Expose belt slings to direct heat or flames.
• Use belt slings at temperatures above 80°C or below 0°C without consulting the supplier.
• Expose belt slings to chemicals without consulting the supplier.
• Shock load belt slings.
• Use belt slings which are cut or which have loose or damaged stitching
