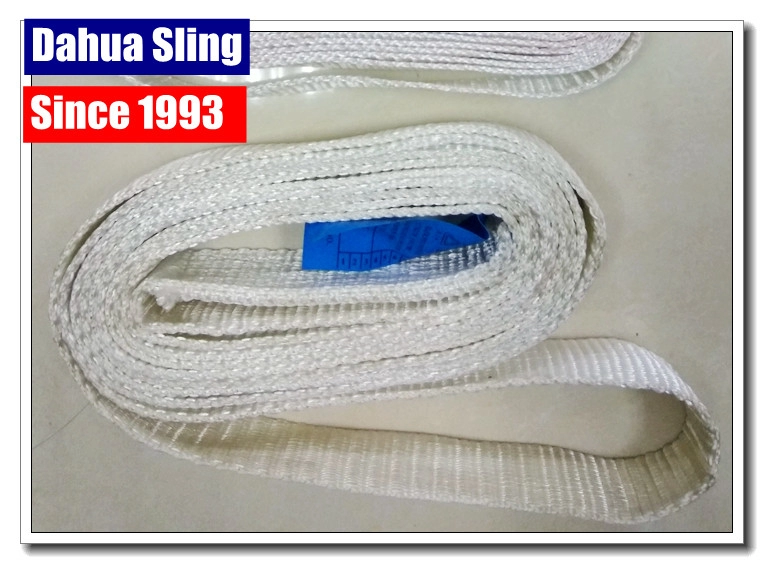

Single Use One Way, Polyester WContinuous Loops Lifting Strap Webbing

Each order of slings can be batch tested on our in-house calibrated tensile testing equipment to class 0.5 accuracy (0.5% max deviation).

These slings may be used for multiple lifts on the load they are primarily attached to, but must not be removed and re-used on another load.

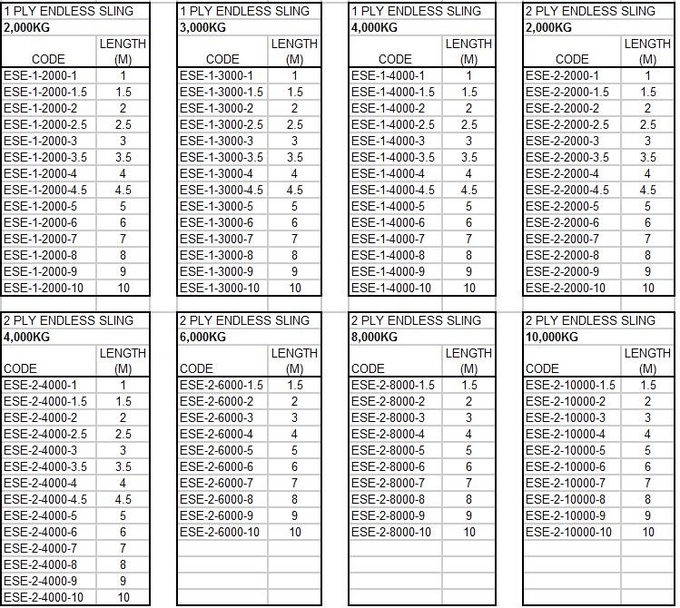

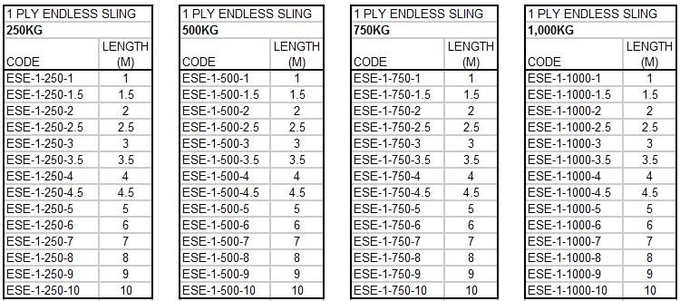

Standard slings are available in 1000mm, 1200mm, 1600mm and 1800mm circumferences which is divided by 2 to calculate the Effective Working Length (EWL), due to them being endless belts, however other lengths are available as special/custom/bespoke units.

*Safety Factor is calculated as Working Load Limit (WLL) multiplied by a factor of 7 to equal minimum breaking force when new e.g. a 500kg WLL x 7 = 3, 500 Kg minimum breaking load (when new).

Features

• Single Use - One Way

• Low cost, simple design

• Easy to use

• Stronger and more compact than rope or wire rope alternative solutions.

• Can be attached or built in to a structure or load, but must only be used to perform a single complete lift.

• Saves time and cost on-site slinging and reslinging loads.

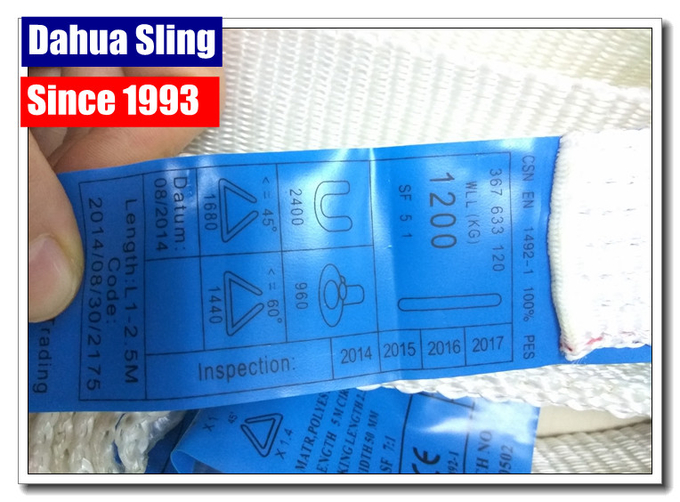

• Fully manufactured, labelled and tested in accordance with BS EN 1492-1:2000 or upon request, manufactured to your commercial specifications with supporting technical file.

• Available as standard in 25mm, 35mm and 50mm widths in endless format or as bespoke units with loops each end.

Specimin Test Results

• Product Type: One Way Sling

• Webbing type: Polyester Seat Belt

• Webbing Width: 48mm

• Test Name: Tensile Test

• Test Type: Tensile

• Test Date: 08/03/2007 16:43

• Test Speed: 100.00mm/min

• Pretension: 0.050 N

• Sample Length: 1000.000mm

• Force at Peak (kN) = 43.910

• Elongation at Break (mm) = 80.602

• Time to Failure (Secs) = 48.280
