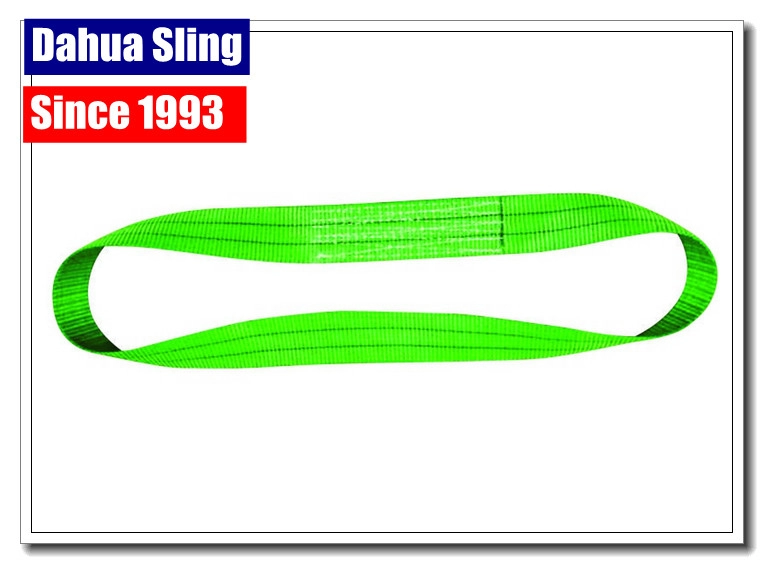

Large Capacity Long Green Lifting Straps , Certified Disposable Lifting Slings
| Place of Origin: | China |
| Brand Name: | Dahua Sling |
| Certification: | BS EN 1492-1:2000 |
| Model Number: | web sling |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | USD 30,000 / 20'GP |
| Logo: | We Do It Oursleves | Eye Protector: | White Black Or Same As Webbing |
|---|---|---|---|
| Material: | 100 % Polyester | Layer:: | 1 Layer |
| Packing: | Blank Or Printed One Way Sling | Sling Type: | Endless Flat Webbing Sling |
| W.L.L: | 250 Kg Endless Sling 750 Kg One Way Sling 1500 Kg Diposable Sling | COLOR: | Yellow |
| Standard: | BS EN 1492-1:2000 | ||
| High Light: | endless webbing sling,flat endless belt | ||

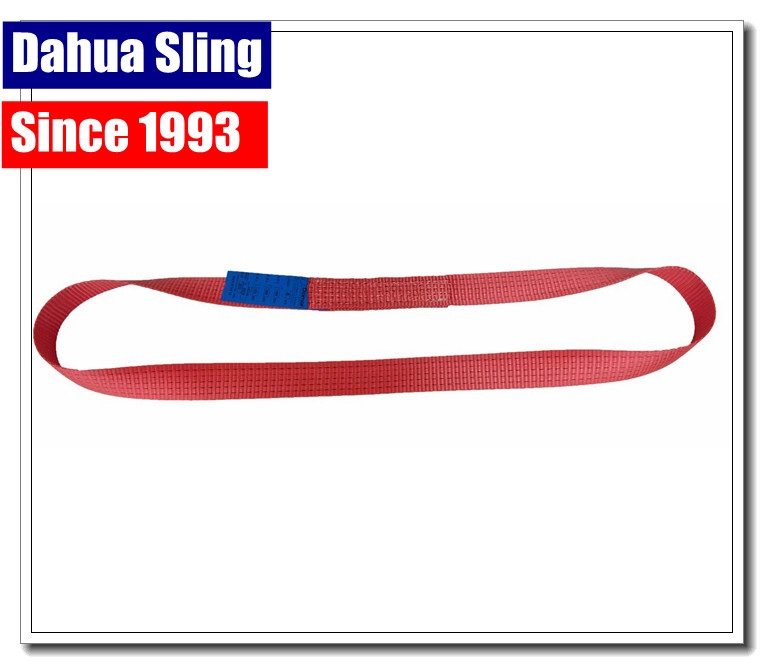

Single Use, One Way, Polyester Webbing Seat Belt Round Sling / endless slings. 7:1 Ratio FOS - Range from 250kg to 1000k
Standard slings are available in 1000mm, 1200mm, 1600mm and 1800mm circumferences which is divided by 2 to calculate the Effective Working Length (EWL), due to them being endless belts, however other lengths are available as special/custom/bespoke units.
*Safety Factor is calculated as Working Load Limit (WLL) multiplied by a factor of 7 to equal minimum breaking force
Features
Single Use - One Way
Low cost, simple design
Easy to use
Stronger and more compact than rope or wire rope alternative solutions.
Can be attached or built in to a structure or load, but must only be used to perform a single complete lift.
Saves time and cost on-site slinging and reslinging loads.
Fully manufactured, labelled and tested in accordance with BS EN 1492-1:2000 or upon request, manufactured to your commercial specifications with supporting technical file.
Available as standard in 25mm, 35mm and 50mm widths in endless format or as bespoke units with loops each end.
Specimin Test Results
Product Type: One Way Sling
Webbing type: Polyester Seat Belt
Webbing Width: 48mm
Test Name: Tensile Test
Test Type: Tensile
Test Date: 08/03/2007 16:43
Test Speed: 100.00mm/min
Pretension: 0.050 N
Sample Length: 1000.000mm
Force at Peak (kN) = 43.910
Elongation at Break (mm) = 80.602
Time to Failure (Secs) = 48.280
| Endless sling (Type 5) | ||||||
| Plies of Web | Model | Wed Width (in.) | Rated Capacity (lbs.) | base Length(ft) | ||
| Vertical | Chocker | Vertical Basket | ||||
| One Ply | SEN1-1 | 1 | 2400 | 1920 | 4800 | 3 |
| SEN1-2 | 2 | 4800 | 3840 | 9600 | 3 | |
| SEN1-3 | 3 | 6600 | 5280 | 13200 | 3 | |
| SEN1-4 | 4 | 8800 | 7040 | 17600 | 3 | |
| SEN1-5 | 5 | 11000 | 8800 | 22000 | 3 | |
| SEN1-6 | 6 | 13200 | 10560 | 26400 | 3 | |
| Two Ply | SEN2-1 | 1 | 4800 | 3840 | 9600 | 3 |
| SEN2-2 | 2 | 9600 | 7680 | 19200 | 3 | |
| SEN2-3 | 3 | 12500 | 10000 | 25000 | 3 | |
| SEN2-4 | 4 | 15500 | 12400 | 31000 | 3 | |
| SEN2-5 | 5 | 19400 | 15520 | 38800 | 3 | |
| SEN2-6 | 6 | 23000 | 18400 | 46000 | 3 | |
